A question I see constantly: "full grain or tumbled leather — which breaks in faster?" After close to twenty years on the manufacturing side, my honest answer is that the question is built on a mix-up. Those are not two grades of the same thing. One is a grade. The other is a process. And neither one is what actually decides how long your boots hurt.
Full grain is a grade. Tumbled is a process.
Full grain means the top surface of the hide is intact — nobody sanded it. You can see the pores, the scars, the natural variation. It is the strongest layer of the hide because the fibers are tightest at the surface.
Tumbled (also called milled or drummed) means the finished hide was thrown in a large drum and rolled dry for hours. That does two things: it softens the leather, and it raises a pebbled texture on the surface.
Here is the part that gets lost: you can tumble anything. Tumbled full grain exists. So does tumbled corrected grain — leather that was sanded to remove flaws, coated, and then milled to put a texture back on top. From across the shelf they look similar. They are not the same leather.

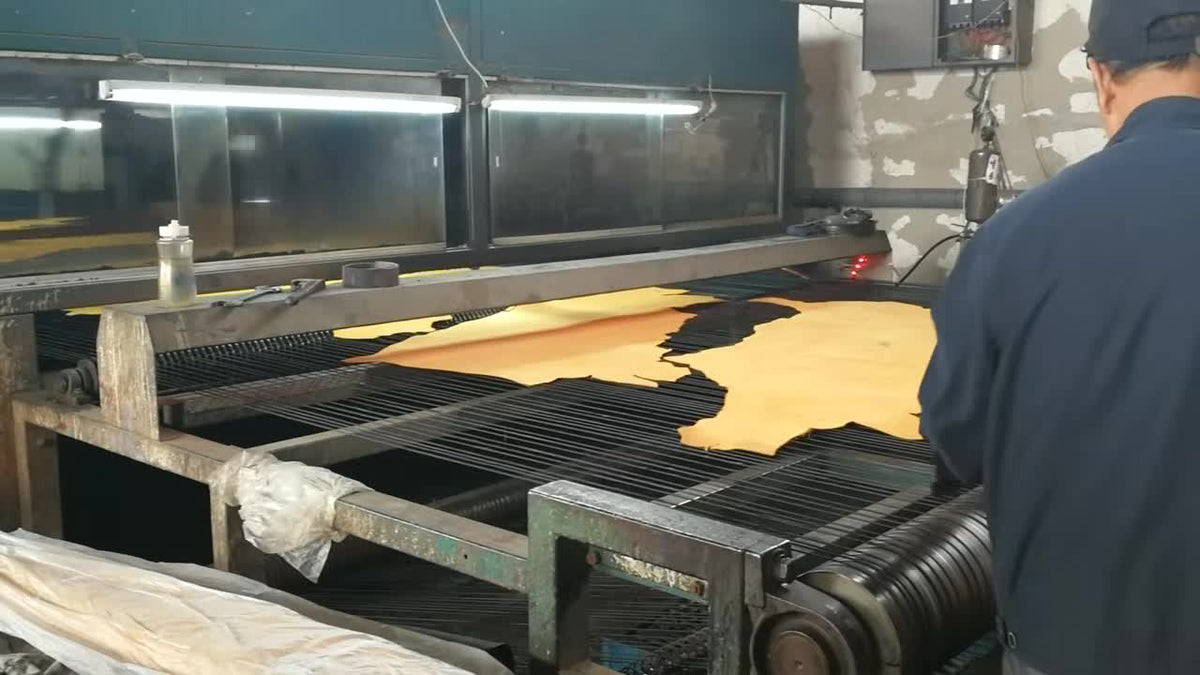

At the factory, when a tannery offers us a "tumbled" leather, the first question is always: tumbled what? The texture tells you about the last step. It tells you nothing about the grade underneath.
What actually decides break-in
Break-in is the boot's stiffness fighting your foot until one of them gives. Four things set that stiffness, and grain is not really one of them.
1. Thickness. Work boot uppers are typically cut from leather somewhere around 1.6 to 2.0 mm. Heavy heritage-style boots go thicker. Every tenth of a millimetre you add makes the boot stiffer on day one, and this is the single biggest variable. A soft 1.6 mm full grain has almost no break-in. A 2.2 mm full grain from the same tannery will take weeks.
2. Tannage and oil. Chrome-tanned leather starts soft. Vegetable-tanned leather starts stiff and moulds to the foot over time. Oil-tanned and waxed leathers — the pull-up leathers that darken where they bend — sit in between and tend to be forgiving from the first wear because the oil is already in the fibers.
3. Finish. A heavy pigment coat stiffens the surface and cracks as it flexes. A light or no top coat lets the leather move. This is why two full-grain leathers of identical thickness can feel completely different.
4. What is behind the leather. Lining, heel counter, toe stiffener, and how hard the upper was pulled over the last. A soft leather over a rigid counter still fights your heel. The leather gets the credit or the blame, but a lot of break-in lives in the construction.
So when someone says "my tumbled boots had no break-in," what they usually mean is: thinner leather, softer tannage, lighter finish. The tumbling helped. It was not the reason.
Then why does it matter which one you buy?
Because break-in is a two-week problem and grain is a two-year problem.
Full grain keeps the strongest fibers. It resists tearing at the eyelets and the flex point, it takes a beating on the toe, and it can be cleaned and conditioned back. Corrected grain with a coating hides a weaker surface under paint. It looks perfect at month one and cracks along the flex crease somewhere between month six and month eighteen, and once the coating goes there is nothing to condition.
Soft on day one is nice. Intact at month eighteen is what you paid for.
How to tell what you are holding
You do not need a lab. Three checks in the store:
- Bend it. Fold the vamp back on itself and look at the crease. Full grain shows fine, uneven wrinkles — the surface is alive. A coated corrected grain shows either a smooth uniform bend or tiny cracks in the finish.
- Look for the scars. Full grain has small marks, pores, and variation from panel to panel. A hide with a perfectly even texture on every panel was either sanded flat or is not leather.
- Press a fingernail into it. Oil-tanned and waxed full grain will lighten or mark and then mostly recover. A heavy finish does not move at all.
None of these will fool a tanner, but they will sort most of what is on a shelf.
The leather we are working with
For the boot we are building, the current sample is a full-grain, waxed pull-up leather — the kind that scuffs light where it bends and buffs back. We chose it because it sits in the forgiving zone from the first wear and still has an intact surface to protect. The pull-up marking is not a defect; it is how you can tell the surface has not been painted over. The exact thickness gets confirmed on the sample, and it will be on the product page when it does.
If you have had a pair go soft fast and then fail early, or a pair that fought you for a month and then lasted five years, I want to hear which leather it was and where it gave. Reply to any email from us, or find me on r/WorkBoots. This kind of history is what decides what we cut the next sample from.
